How to Choose the Right Aerial Work Lifting Platform

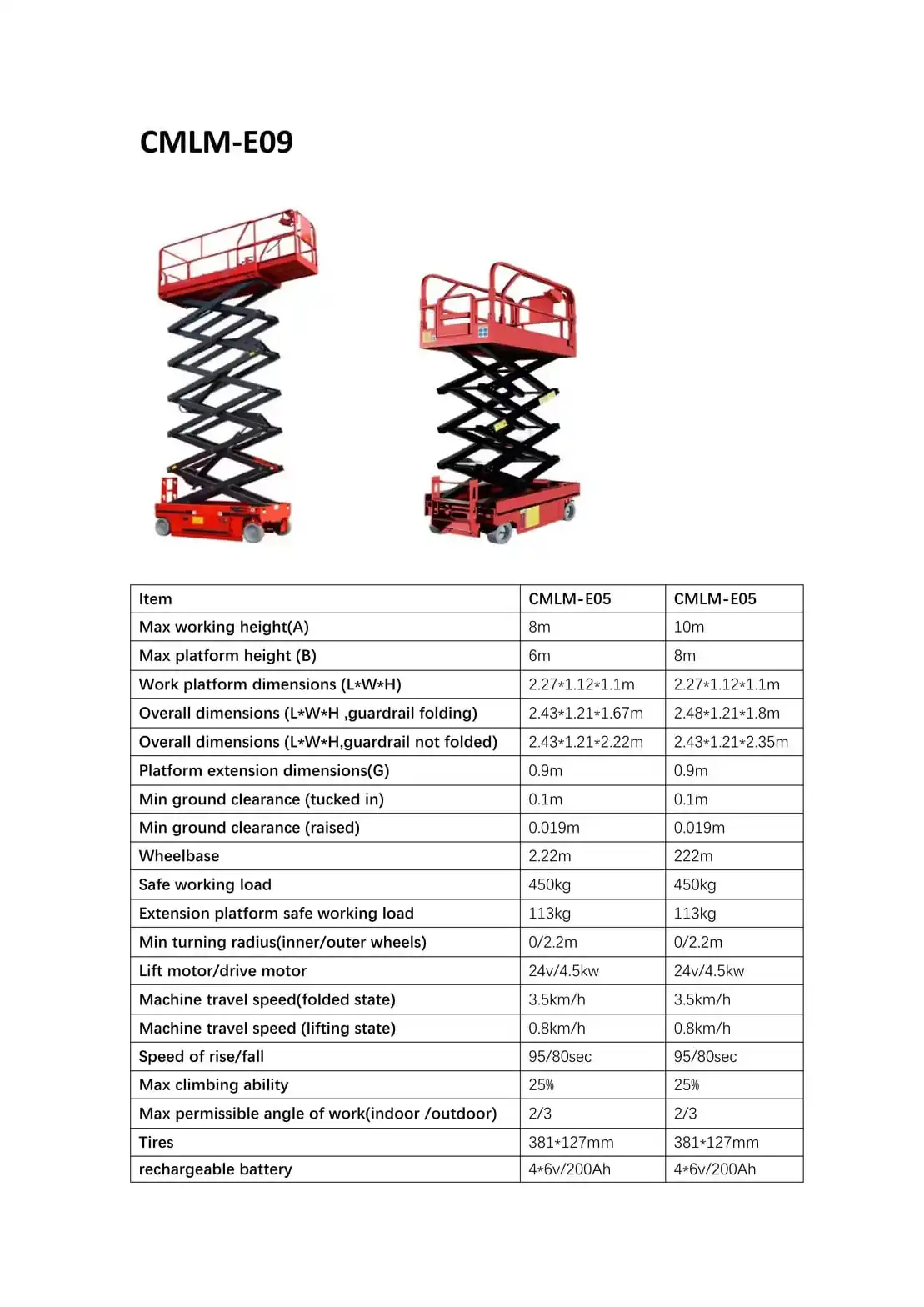

CMLM-E09 (Self-Propelled Scissor Lift)

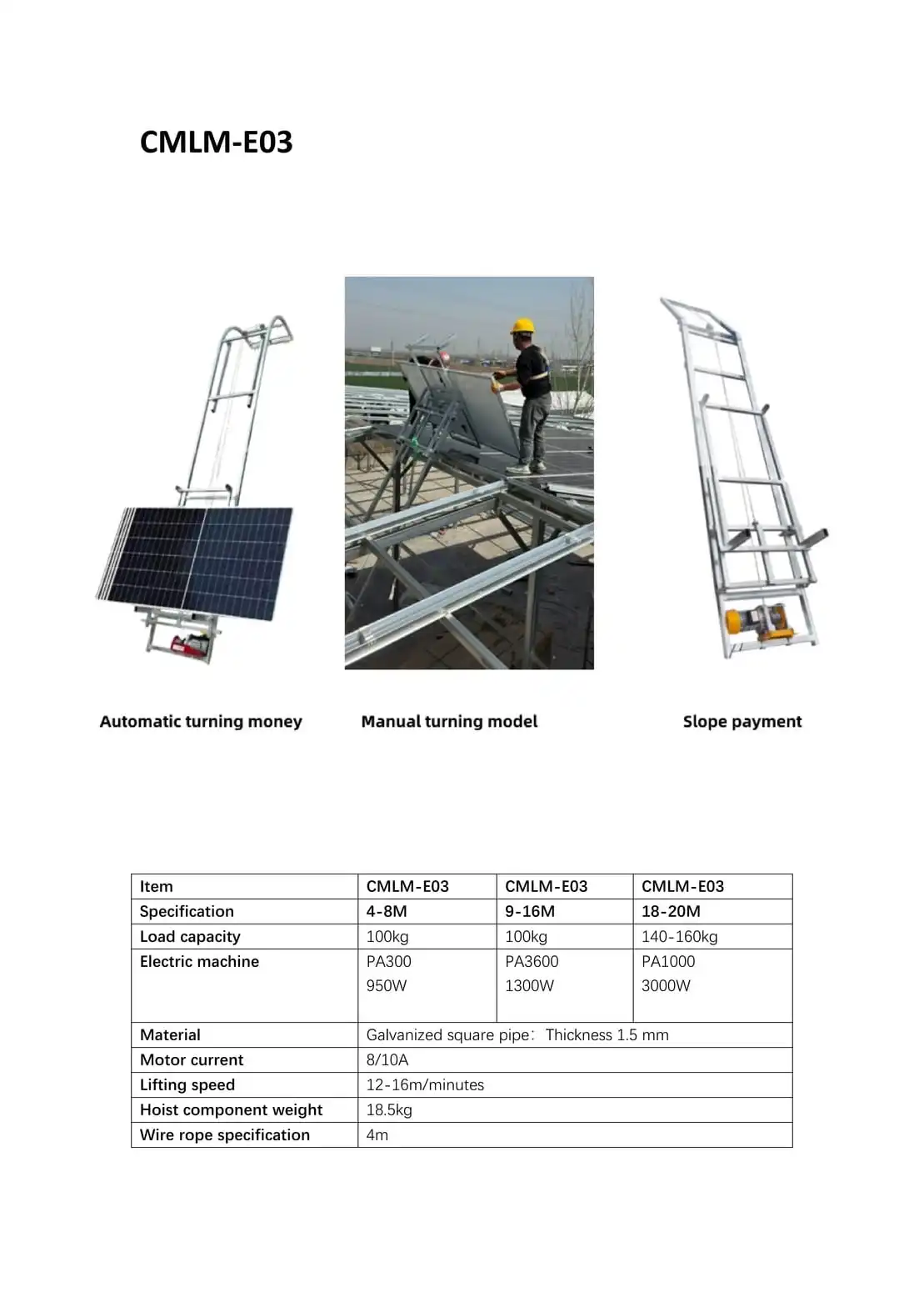

CMLM-E03 (High-Altitude Lift)
When selecting an aerial work platform, the two most critical factors are working height and mobility. Chenma offers two distinct solutions: the self-propelled CMLM-E09 Scissor Lift for heavy-load indoor/outdoor projects, and the versatile CMLM-E03 Galvanized Lift for ultra-high access.
Direct Answer: The Selection Rule
Choose the CMLM-E09 if you need a mobile platform with large capacity (450kg) and self-driving capability up to 10m. Choose the CMLM-E03 for lightweight workers reaching extreme heights of 4-20m on a budget.
Model Comparison
| Feature | CMLM-E09 (Scissor) | CMLM-E03 (High-Altitude) |
|---|---|---|
| Type | Self-Propelled Scissor Lift | Galvanized Square Pipe Lift |
| Safe Working Load | 450 kg | 100 kg (4-16m) / 140-160 kg (18-20m) |
| Max Working Height | 8 m / 10 m | 4-20 m |
| Mobility | Self-Propelled (3.5 km/h) | Stationary / Semi-Portable |
| Platform Size | 2.27 x 1.12 x 1.1 m | Variable by specification |
Safety Checklist for Aerial Work
- Ground Assessment: Ensure the ground is level and capable of supporting the machine's weight plus load.
- Perimeter Safety: Set up warning signs and barriers around the working area to prevent unauthorized access.
- Weather Check: Do NOT operate the CMLM-E03 or any high-altitude lift in winds exceeding 12.5 m/s (Beaufort 6).
- Harness Mandatory: Operators must wear full-body safety harnesses anchored to designated points.
